Containers / Columns

Important

Do not rename the generated bone names or change their hierarchy. The add-on will no longer be able to recognize them correctly.

Containers

A container is the box that groups and manages sliders or joysticks.

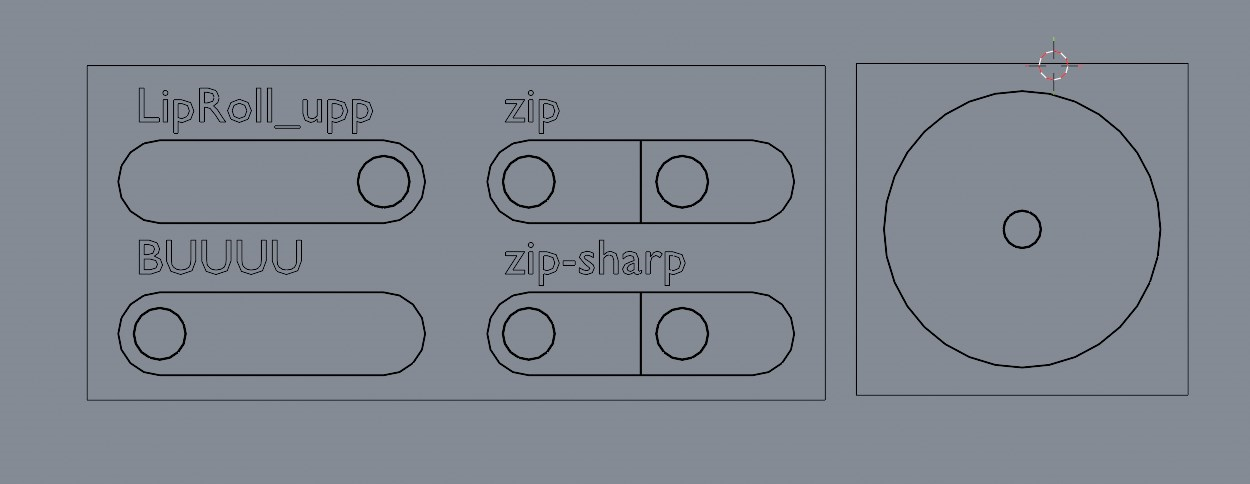

Container Types

Type	Description
Slider Container	Stores horizontal sliders
Joystick Container	Stores a 2D joystick

Container Basics

• You can place multiple containers on a single armature
• Even if the scene contains multiple armatures, each armature can have its own independent set of containers
• A single container can contain only one type: either Slider or Joystick
• If the armature object's scale is not 1, sliders will not display at the correct scale. Apply the scale before use to set it to 1.
• When you change a container's Scale or Width while keyframes exist, existing keyframes are automatically rescaled to preserve the same output values. The same applies when changing a slider's Range or default value

---

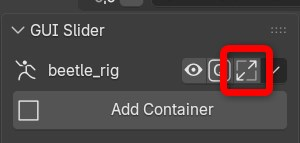

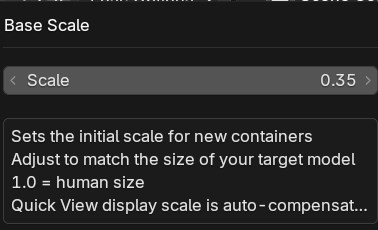

Base Scale

• Applied as the default Container Scale when creating new containers
• Does not affect existing containers
• Quick View display scale is automatically compensated (containers appear at a consistent size regardless of the scale value)
• 1.0 = sized to sit beside a human face. Adjust to match the size of your target model

Warning

When creating a container with the default value of 1.0 for extremely large objects such as robots, the container will be created at a relatively small size compared to the object. Base Scale compensates for this gap. If you are unsure about the scale, create a container at the default 1.0, fine-tune the container size, note the scale value, and then apply it to Base Scale.

Track Style

Style	Description
Capsule	A capsule shape. The standard look
Line	A thin rectangular line for a simpler look

Panel Header Buttons

Buttons at the top-right of the container section in the N panel:

Button	Description
👁 Toggle All Containers	Toggles visibility of all containers at once (always forced visible during Quick View)
Q (Quick View)	Enters Quick View mode
⤢ Base Scale	Opens the Base Scale settings dialog
▼ Menu	Opens helper functions such as Cleanup All

Buttons in each container header row:

Button	Description
✥ Base Position Edit	Enters Base Position Edit mode
🔲 Container Wire	Toggles the container frame wire display
⚙ Settings	Opens the settings popup
🗑 Delete	Deletes the container

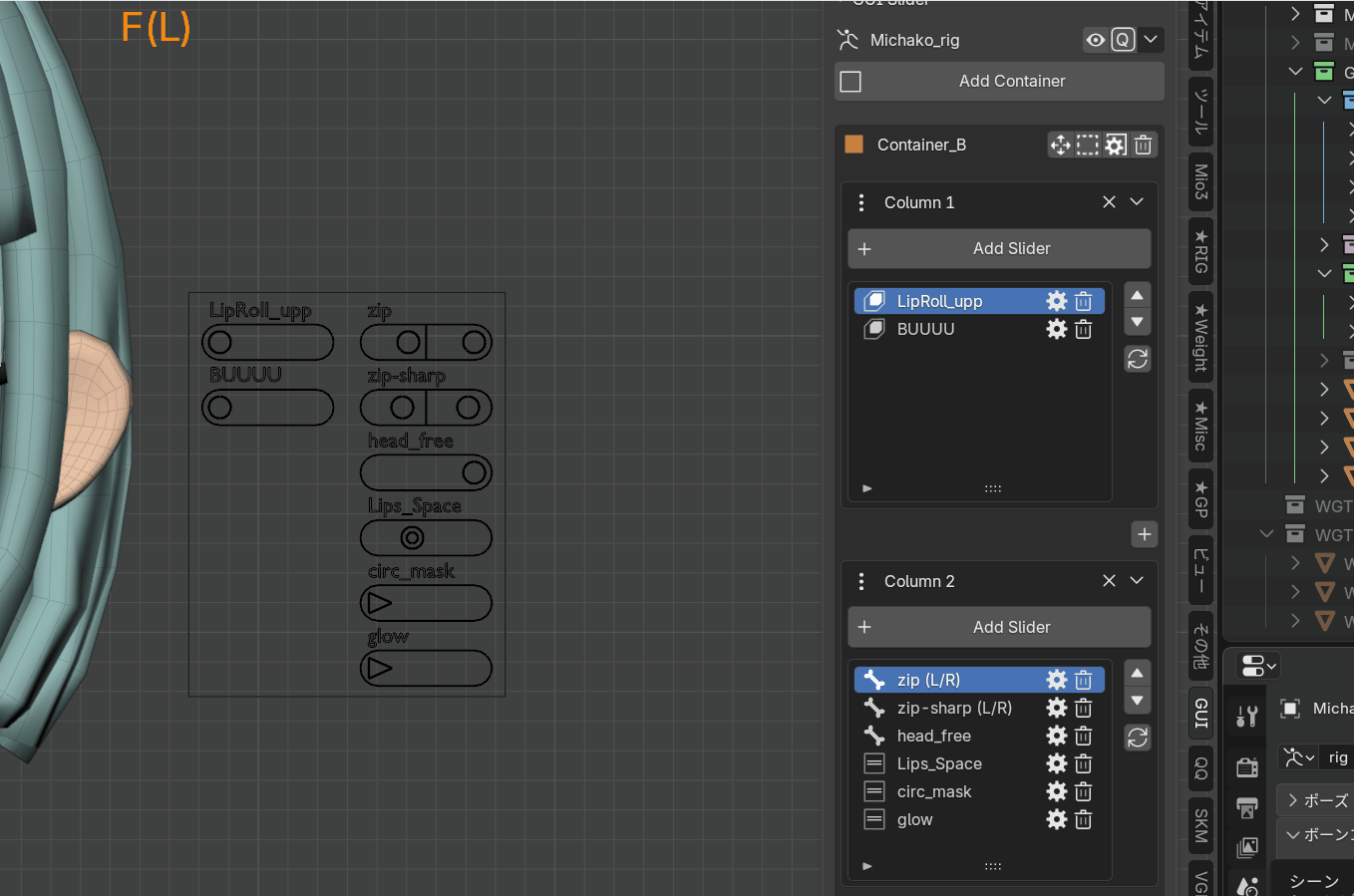

Adjusting Container Position

Use this when you want to adjust a container's base position.

1. Click Base Position Edit in the container header to enter Base Position Edit mode
2. The container and its related bones are selected automatically
3. Reposition them without changing the current bone selection
4. When finished, click Confirm to apply the change and return to Pose Mode
5. If you want to discard the edit, click Cancel to return

Warning

Moving it this way preserves the adjusted position even after Transform Reset. You can also move bones directly in Pose Mode, but this method is recommended for permanent layout adjustments.

Follow Bone

Follow Bone makes a container follow a specific bone. The container position and orientation automatically react to the target bone's position and rotation.

Modes

Mode	Description
OFF	No follow behavior
Simple	Follows position and inherits only the specified rotation axes. A lightweight Child Of based method
Advanced	Follows via parent chain (position) + Copy Rotation (selected axes) for accuracy. Uses intermediate bones internally

Follow Rot Axis

Follow Rot Axis (X / Y / Z) specifies which rotation axes of the target bone are reflected.

• If all axes are OFF, only the position is followed
• By default, only the Z axis is followed

---

Columns

Columns let you split sliders into multiple vertical groups inside one container.

Column Basics

• Up to 8 columns can be added
• Newly added sliders are placed in the currently selected column

For example, you can organize columns by categories such as Eyes, Mouth, and Brows.

Adding Columns

In the N panel, insert a new column with the + button between columns.

What You Can Do From the Column Menu

From the pull-down menu in a column header, you can:

• Delete a column
• Move a column
• Rename a column
• Toggle label display for the whole column
